I received a private letter, which asked me what the carbon fiber cloth reinforcement layering was. We all know the carbon fiber cloth reinforcement. But in the specific construction details, there is still a lot of knowledge. So now let’s talk about what the carbon fiber cloth reinforcement layering is on earth.

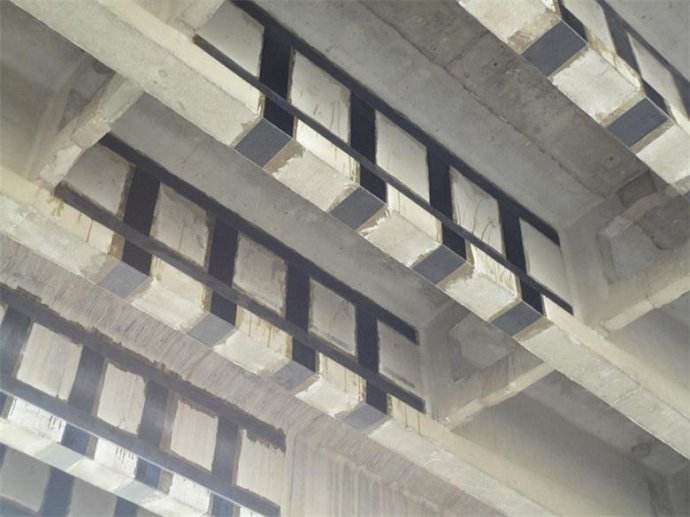

When the concrete structure is reinforced with pasting the carbon fiber cloth, we all paste the carbon fiber to the surface of the component by the supporting bonding material so that the carbon fiber cloth can bear the tensile force and coordinate with the concrete deformation. Through the picture we can see that usually when we do the carbon fiber cloth reinforcement on the beam structure and concrete structure, there will be a U-shaped paste shape. When we reinforce the bending areas of the positive bending region of beams and boards, the carbon fiber cloth should extend to bearing edge. On both sides of the working points of the concentrated load, it is advisable to set the carbon fiber cloth U-shaped hoop or transverse press bar. In the length of the extension of the carbon fiber sheet, it is common to set the press bars which are perpendicular to the direction of the carbon fiber cloth. Carbon fiber cloth reinforcement bar should be in the design specifications. The width of the bar should be greater than or equal to 0.6 times * beam width ≥ 0.5 times the thickness of the carbon fiber cloth at the bottom of the beam. Now let’s look at some pictures about the carbon fiber cloth reinforcement layering.
After talking so much, I don’t know if you have figured out the concept of carbon fiber cloth reinforcement bar. If you do not understand, welcome to consult me. The teaching is free. The only requirement is you should buy Mankate’s carbon fiber cloth! If you are interested in our products, please log in https://www.njmkt.net/, or call 400-894-5118, we will be happy to serve you.
